WHAT TO EXPECT
In this article, users will learn how to add and delete groundSwXtches. While the user interface is automatically added with each groundSwXtch, it is important to just use one for all groundSwXtches that you intend to work together.
This page is organized into two functions:
Add groundSwXtch
Remove groundSwXtch
To edit a groundSwXtch refer to How to use the side panel/Configure and groundSwXtch Details Pane.
Add groundSwXtch

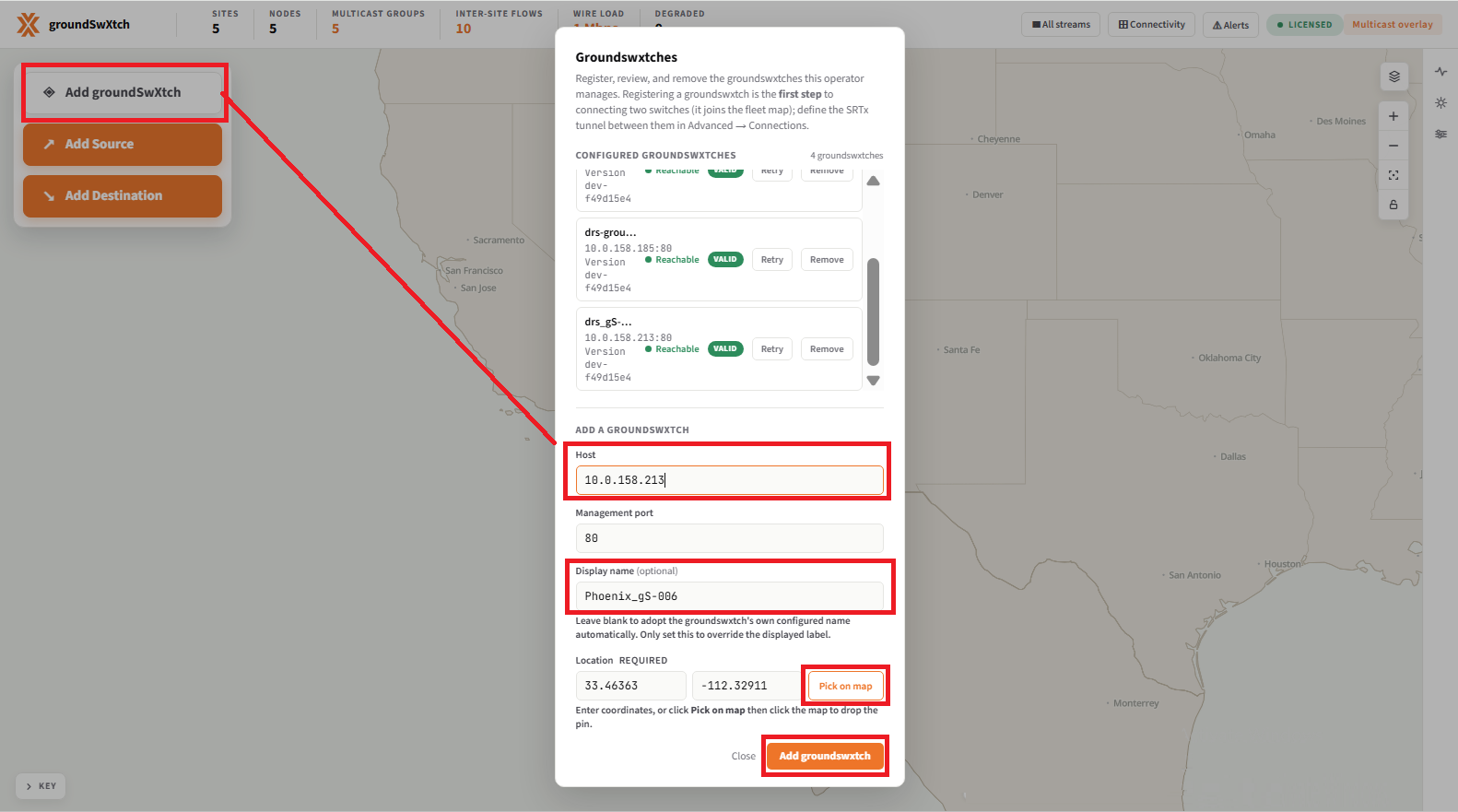

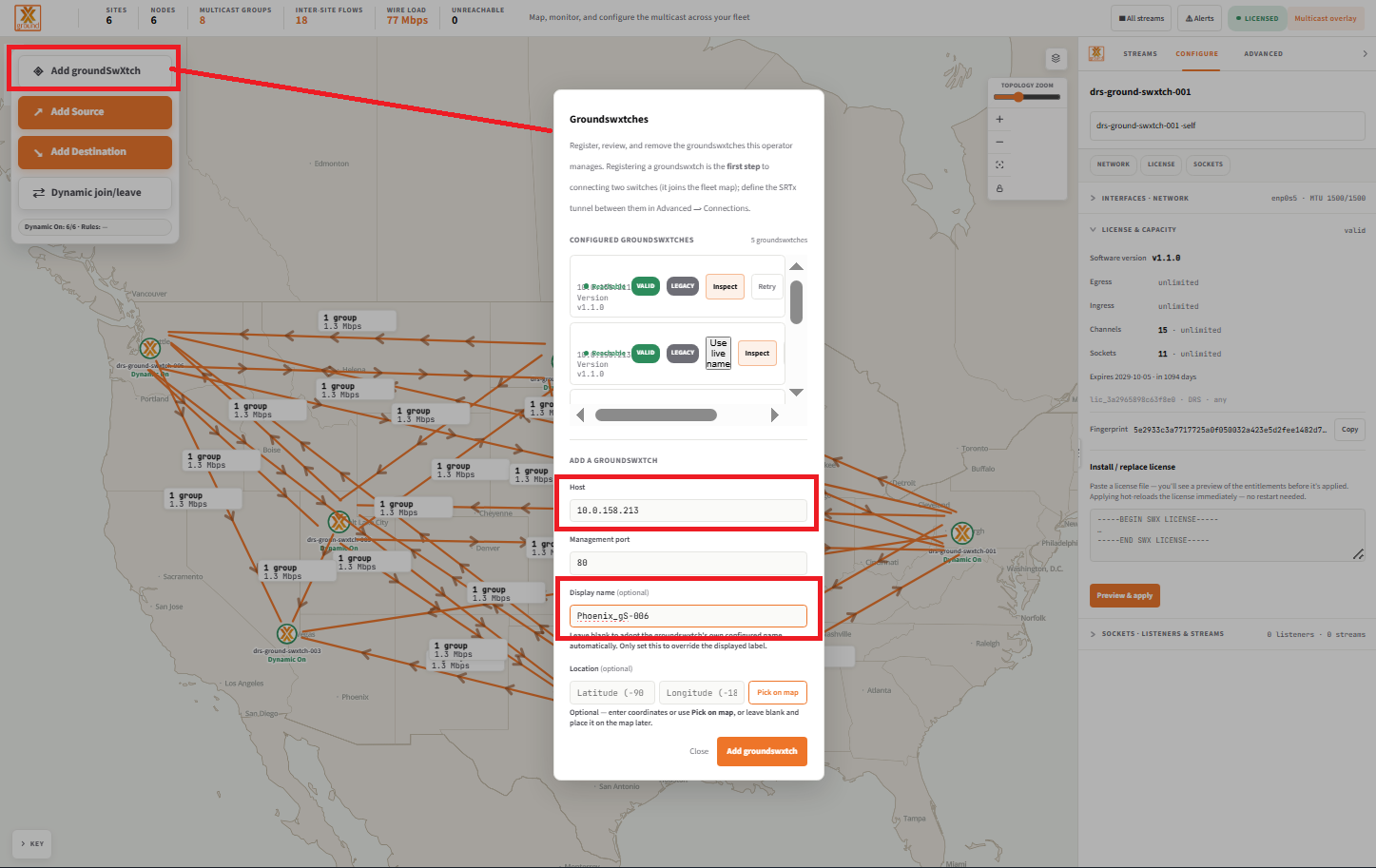

To add a groundSwXtch:
Select Add groundSwXtch icon.
Enter the groundSwXtch Host
If desired enter a Display Name.
Enter Latitude and Longitude or select Pick on Map. Note that this is not necessary if in Schematic mode in layers.
The cursor will show on the map for you to select a location.
Select Add groundSwXtch.
The groundSwXtch will be added.
Edit groundSwXtch
This is done through the side panel and through groundSwXtch details, see How to use the side panel/Configure groundSwXtch
Remove groundSwXtch

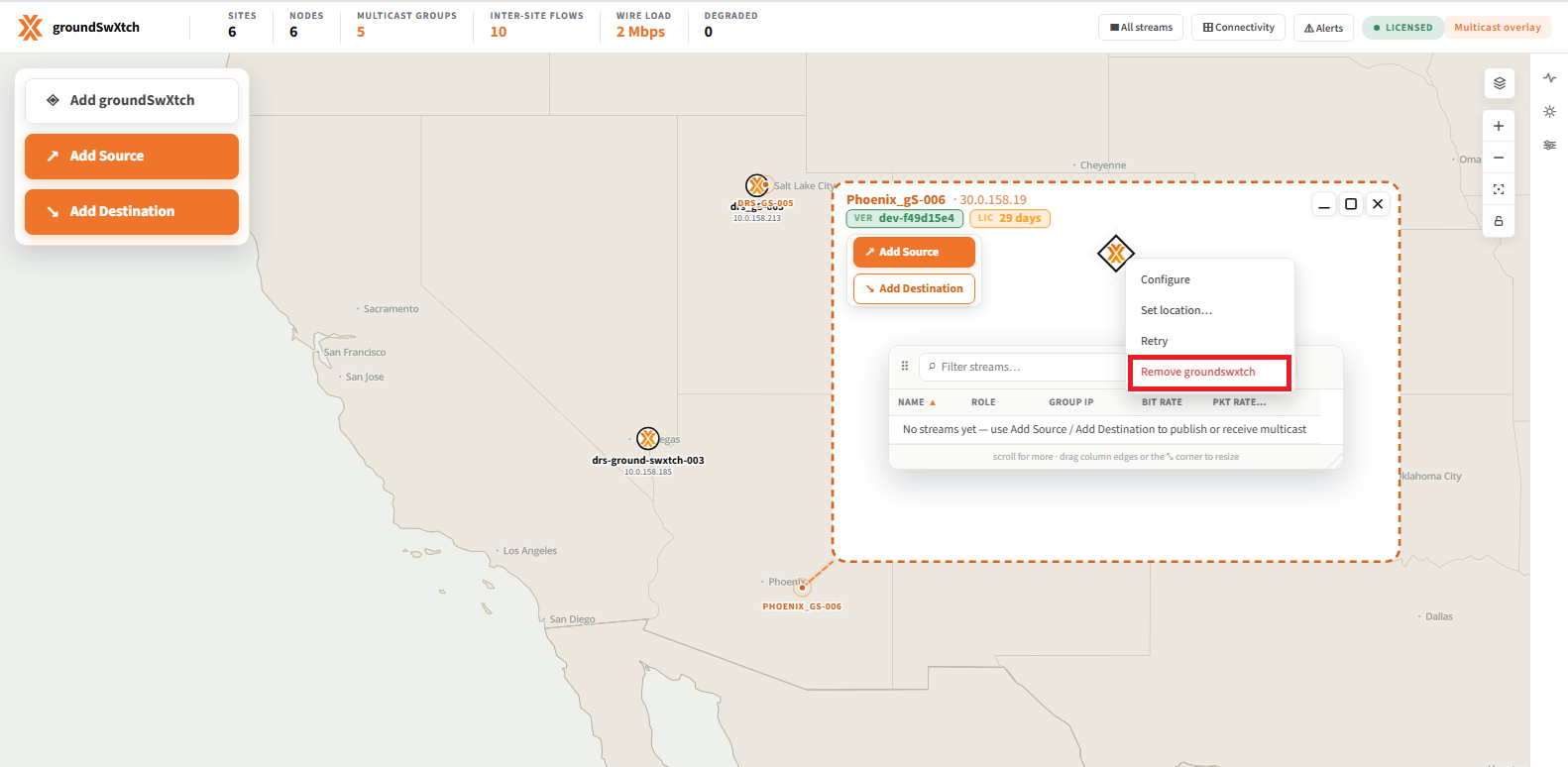

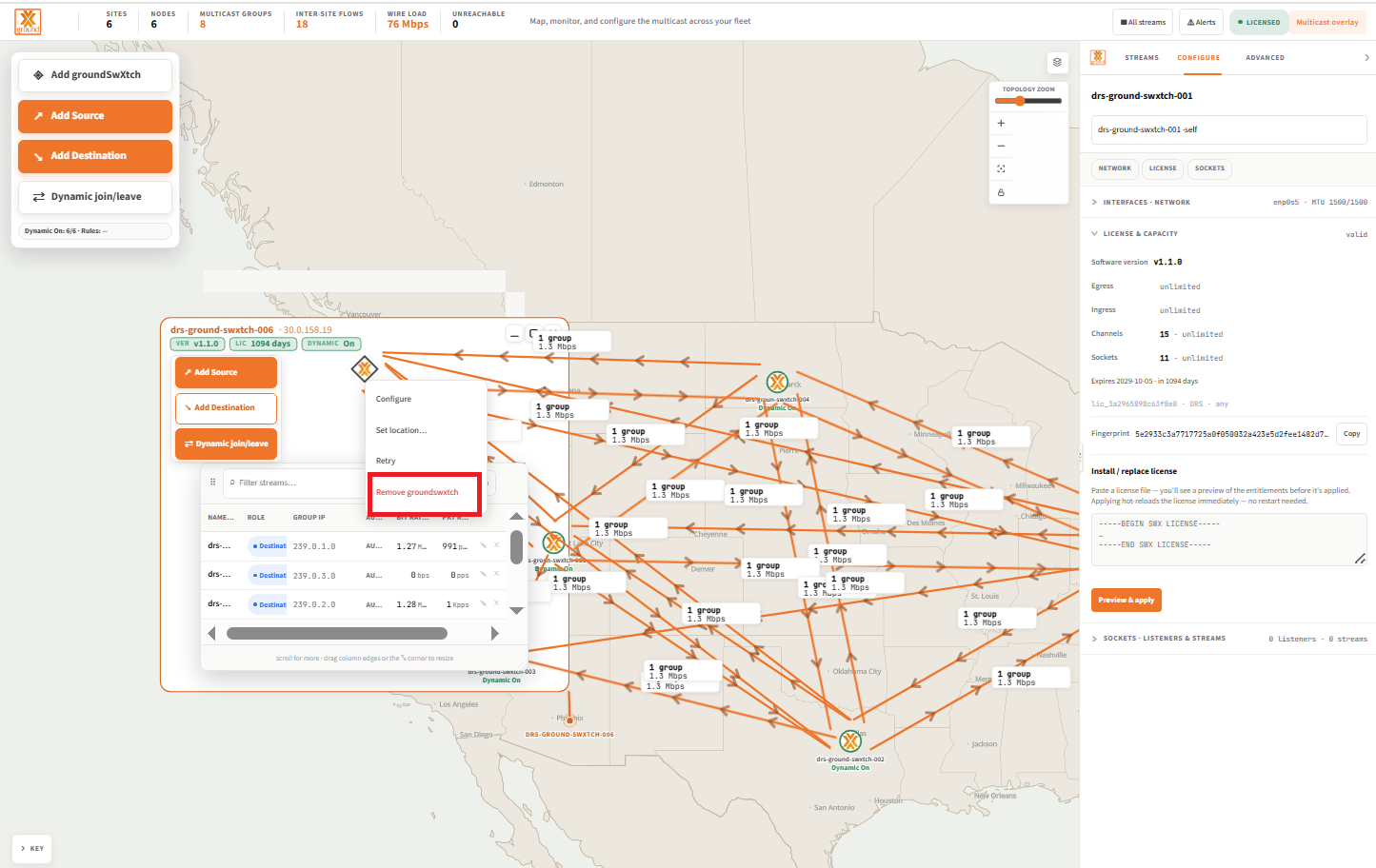

To remove a groundSwXtch:
Right click on the groundSwXtch to be removed on the map.
The groundSwXtch details pane will open.
Right Click on the groundSwXtch in the expanded window and select Remove groundSwXtch.

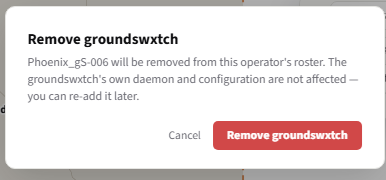

The Remove groundSwXtch confirmation dialog box will open.
Select Remove groundSwXtch or cancel to leave the groundSwXtch.
The groundSwXtch will be deleted.
