WHAT TO EXPECT
For Kubernetes, the xNIC is a lightweight daemonset that must be installed on every node with pods sending or receiving cloudSwXtch traffic. This creates a virtual network interface within the node in a Kubernetes Cluster. Applications that use IP multicast should target this virtual network interface.
In this article, you will learn how to install xNIC on K8s.
Supported Types
Below is a list of supported K8s Clusters. The * denotes default.
AKS: Kubenet CNI*, Cilium CNI, or Callico CNI
EKS: Amazon VPC CNI* and Cilium CNI
GKE: Traditional CNI*, Callico CNI and Dataplane V2 (Cillium)
The following operating systems in a pod are supported for the xNIC on K8s: RHEL 8, RHEL 9, CentOS 8, Ubuntu 20.04, or Ubuntu 22.04.
Installation
The installation process can be split into three steps:
Create a Kubernetes Cluster (AKS, EKS, or GKE)
Post-Installation
You can learn how to upgrade your xNIC nodes on K8s, here.

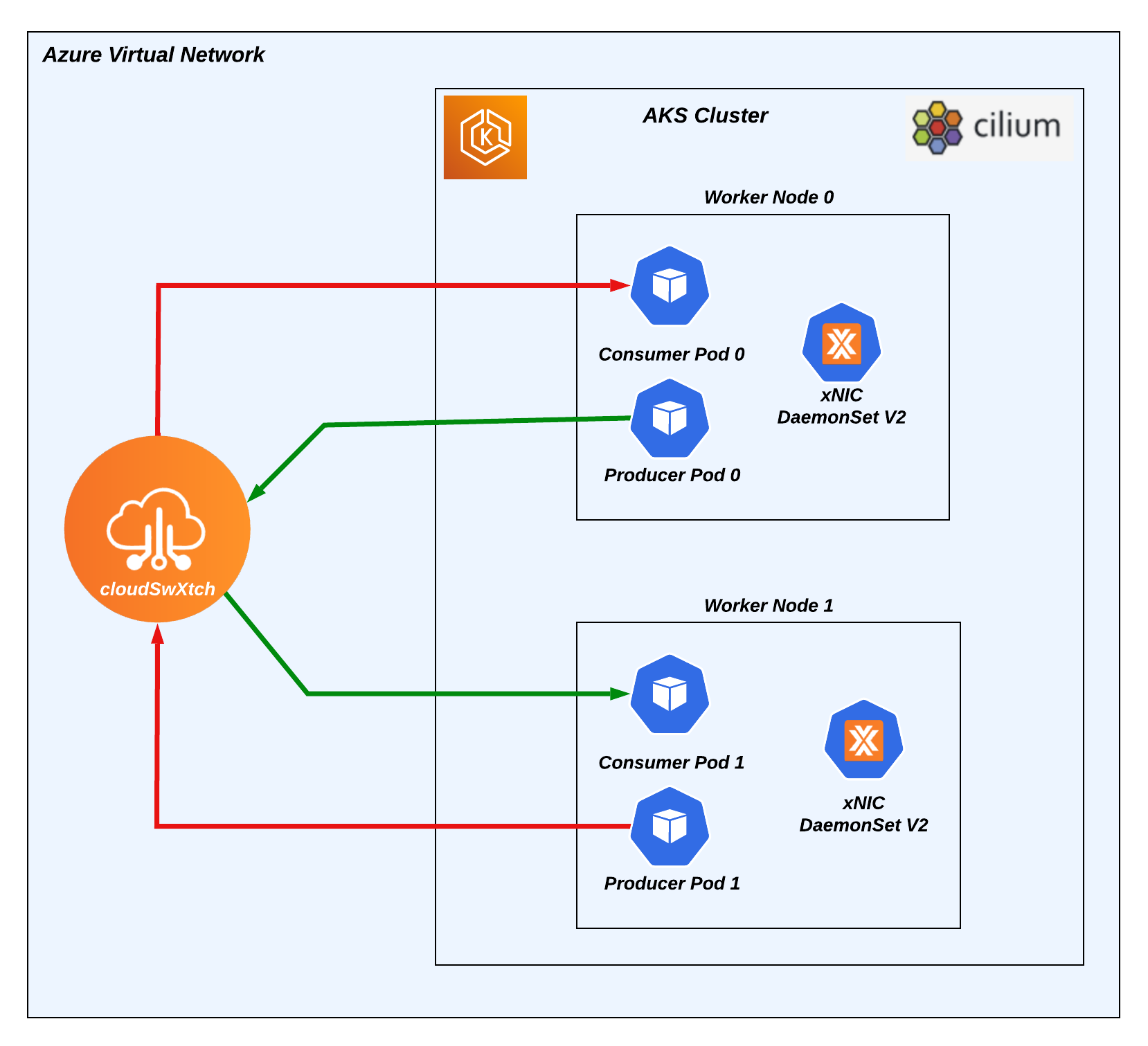

xNIC Architecture Diagram
Below is an example architecture for an xNIC installed on AKS with Cilium with communication to and from a cloudSwXtch. Other Virtual Machines (not AKS) with xNICs installed could also communicate with the AKS worker nodes via cloudSwXtch and xNIC v2.
Please note: The producer pod and consumer pod of the same stream must be in different nodes. For example, Consumer Pod 0 is consuming a stream from Producer Pod 1 from a different node. Consumer Pod 0 cannot consume what Producer Pod 0 is creating since they are in the same node.
