WHAT TO EXPECT
In this article, users will learn what a Tag is and how to view, add, edit, and remove them.
Navigating to the Tags tab
The Tags tab is located in the System Management page on wXcked Eye. To learn how to navigate there, please review the wXcked Eye System Management article.
The Tags tab allows users to create tags to easily filter cloudSwXtches, Clusters, and xNICs within views such as Topology Graph. The graph will show any element that is configured in the system. By adding tags, the user can then filter to only components with that tag.
For more information on how these settings assist in the Topology Graph see:
Topology Graph/View By/Filter By Bar/Tags Filter to see how you can filter the Topology Graph for the created Tag.
wXcked Eye Topology Graph/Edit Components to add Tags to a component.
View By/Filter By Bar/Tags Filter to view Components in the Topology Graph by Tags.
Topology Graph/Layers Toolbox/Tags to view tags in layers.
The Tag page is organized into 3 functions:
Add Tag
Select the Add button
Enter the tag name and select the color
Select Save
NOTE
Tag names at this time cannot be edited. Therefore, ensure you are entering the name to be consistent with other tags so that they look descriptive enough to other users in the drop-down options when filtering, for example, in the Topology Graph.
Below shows the new Tag added.
Search or filter Tags
You can search for Tags using the search button and filter the list.

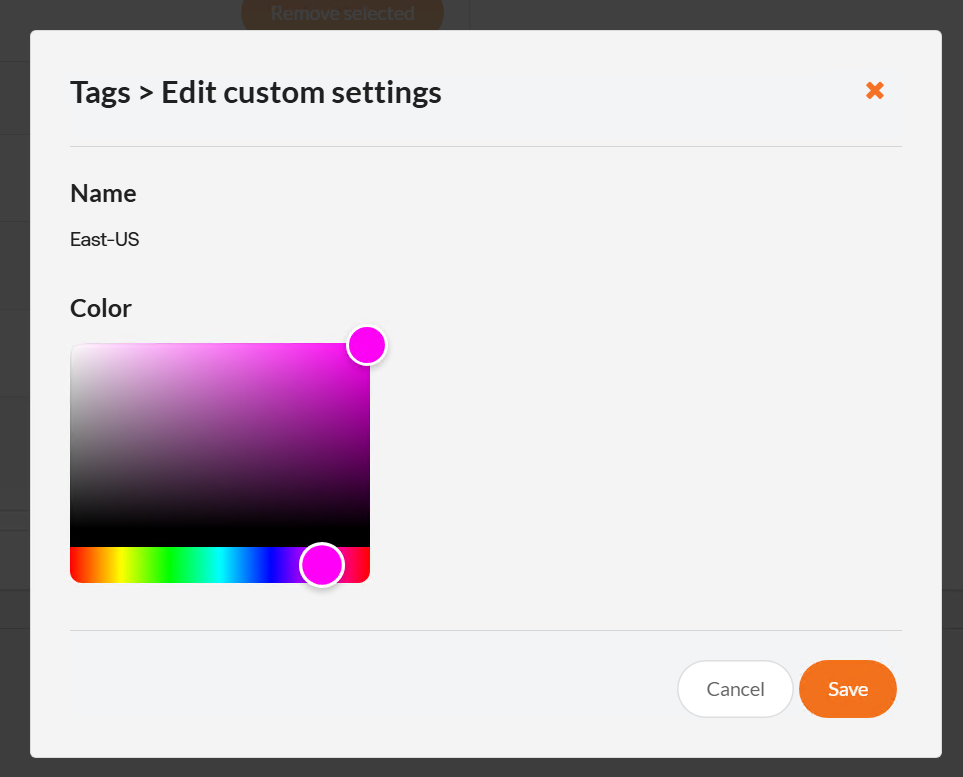

Edit Tags

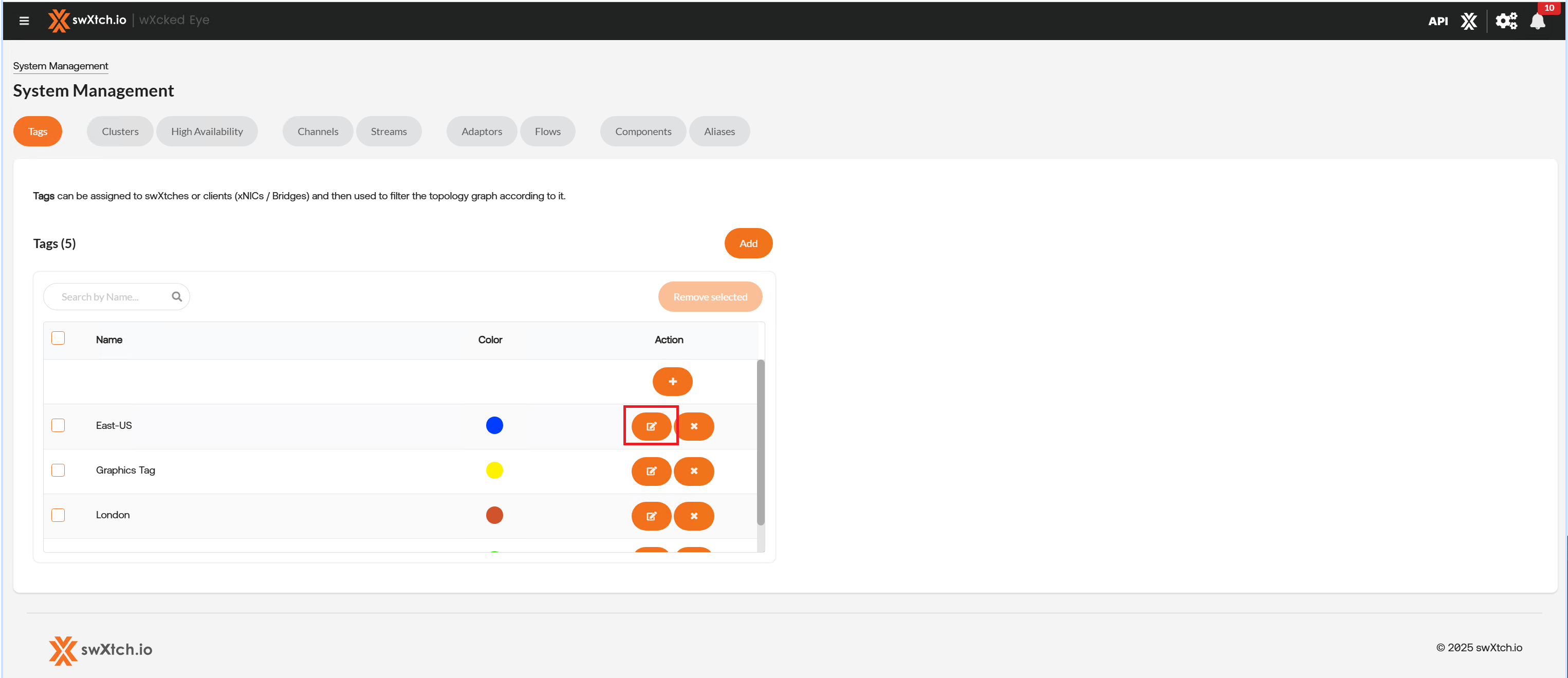

To edit a tag:
Select the edit button.
Edit the color. Note that the name cannot be changed.
Select Save. The tag color will be updated.

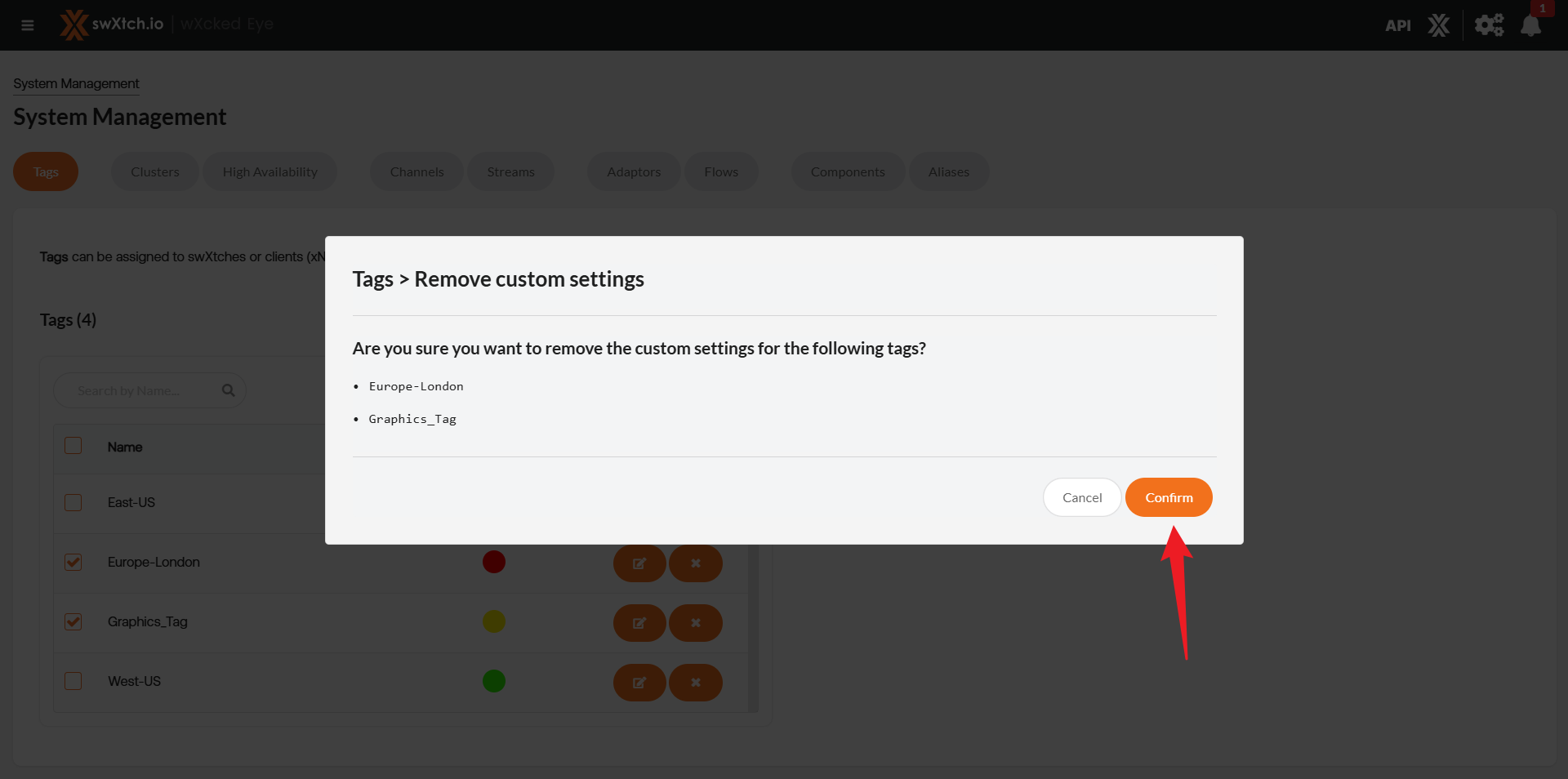

Remove Tag
To remove Tags
Select one or more tags and select the Remove button.
Select Confirm.
